PFx Brick Interface Control Document (ICD)

The ICD describes the details of the PFx Brick internal operations and the communication protocol used by both USB and BLE interfaces.

PFx Brick ICD (English) Rev 3.38 (Aug 2021)	Developer docs/ICD GitHub repository
PFx Brick ICD (English) Rev 3.37 (May 2019)

Python API

Write your own applications and scripts in python to control your PFx Brick! This open source python API is cross platform compatible and is easy to install. You can clone the source code from our GitHub repository or install the pfxbrick package using pip from the PyPI repository.

Python API GitHub repository

Python API Online Documentation

C++ API

Write your own applications in C++ to control your PFx Brick! This open source python API should be cross platform compatible and requires the use of the hidapi (included in the repository as a submodule). You can clone the source code from our GitHub repository and refer to the examples folder for guidance on using the API.

C++ API GitHub repository

C++ API Online Documentation

PFx Brick Scripting Language

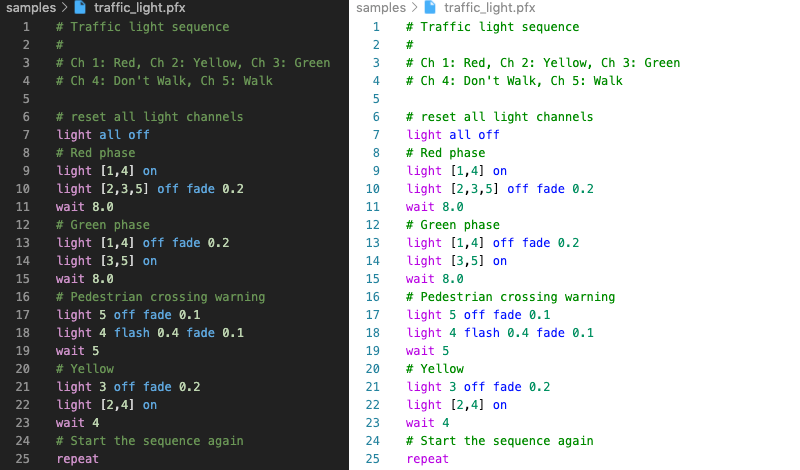

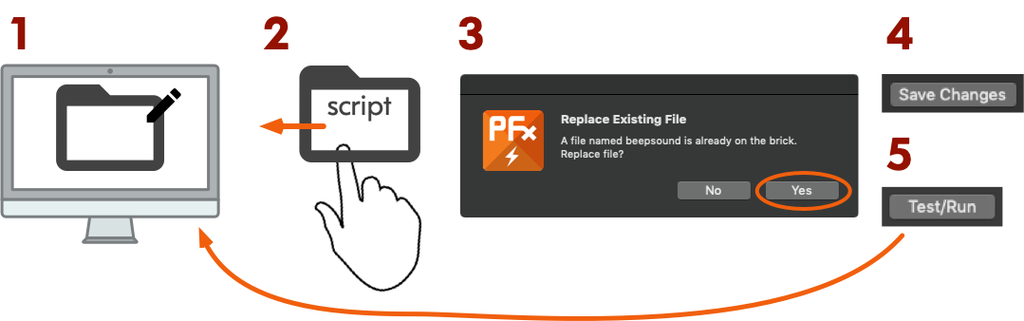

The PFx Brick supports running script files. Scripts are simple, human readable text files stored in the PFx Brick file system. These files conform to a simple script language syntax. Script files can be loaded on to the PFx Brick using the PFx App or by using other 3rd party software to copy files from a host PC to the PFx Brick.

We've also created a Visual Studio Code plugin extension to add syntax highlighting for PFx Brick script files. Also, brickelectronic.de has kindly created a PFx language profile for Notepad++.

PFx Brick Visual Studio Code extension	PFx Brick Language Profile for Notepad++

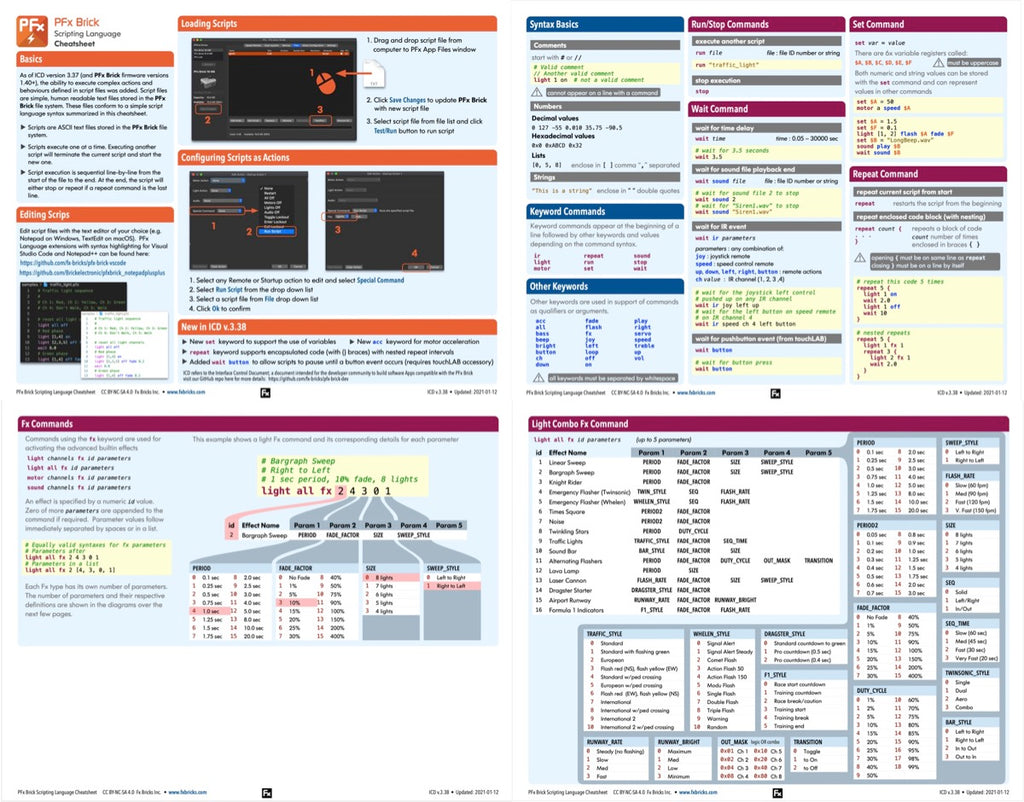

PFx Script Language Cheatsheet
