Use this adaptor cable to connect Fx 9V cables and accessories to LEGO® Power Functions compatible accessories such as motors, lights, or power sources.

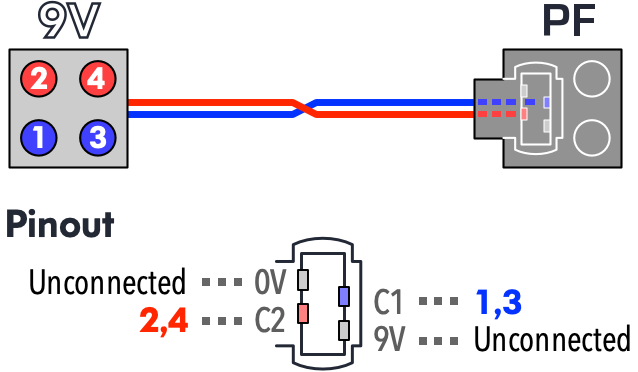

This cable connects the two inner control wires (C1 & C2) of the Power Functions cable to the 9V connector terminals. The 9V & 0V wires of the Power Functions cable are not terminated and are left isolated. This configuration is suitable for use with motors, lights and other peripheral accessory products which use the C1 & C2 wire pairs.
Specifications
| Wire Length | 128 mm (5") |
| Wire Gauge | 24 AWG 0.22 sq mm |
| Wire Insulation | PVC/38P |
| Wire Conductor | Tinned Copper |
| Wire Diameter | 1.5 ±0.1 mm x2 |
| Connector Contacts | Silver plated BeCu |
| Connector Size (L x W x H) | 16 x 16 x 6.4 mm |
| Current (continuous) | 2 A (max) |
