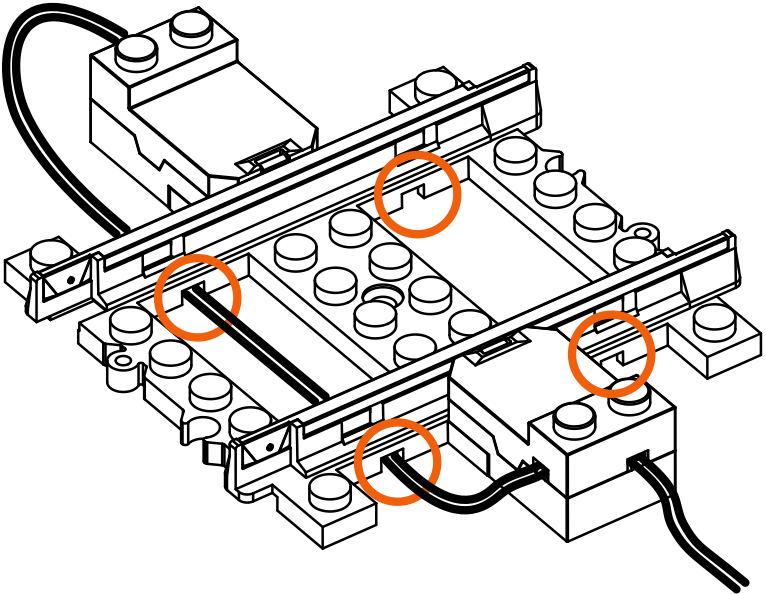

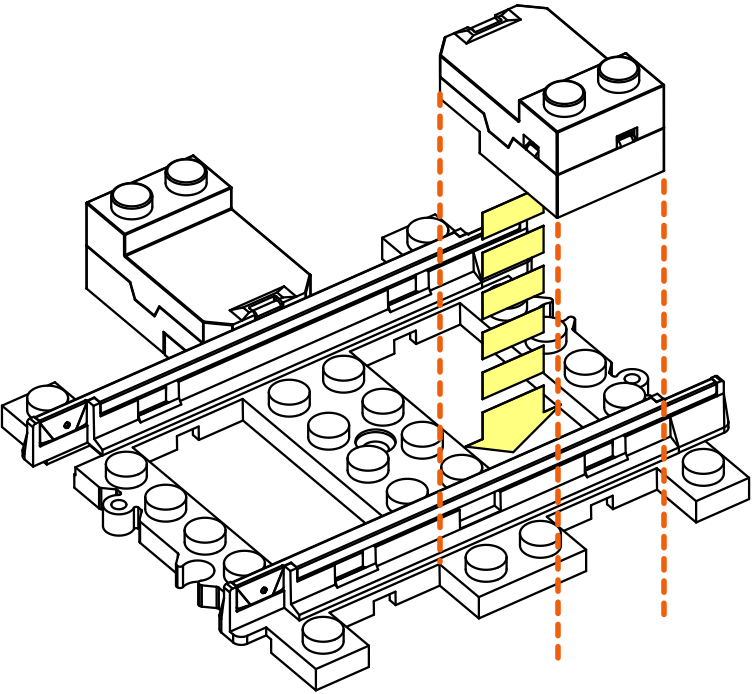

Use this specialized connector cable to energize your Fx Bricks Fx Track or LEGO® 9V metal track train layouts. Low-profile 2x3 stud connector bricks securely attach to opposite sides of the track and are terminated with a Fx 9V connector brick with a 768 mm cable. The connector bricks are molded in the same dark bluish grey ABS plastic as Fx Track so that they will blend in discreetly on your train layout. A low-profile design ensures a safe clearance zone of 2 studs flush with the rail head on each side of the track—eliminating the possibility of interfering with passing trains which have overhanging features such as coupling rods or bogie sideframes.

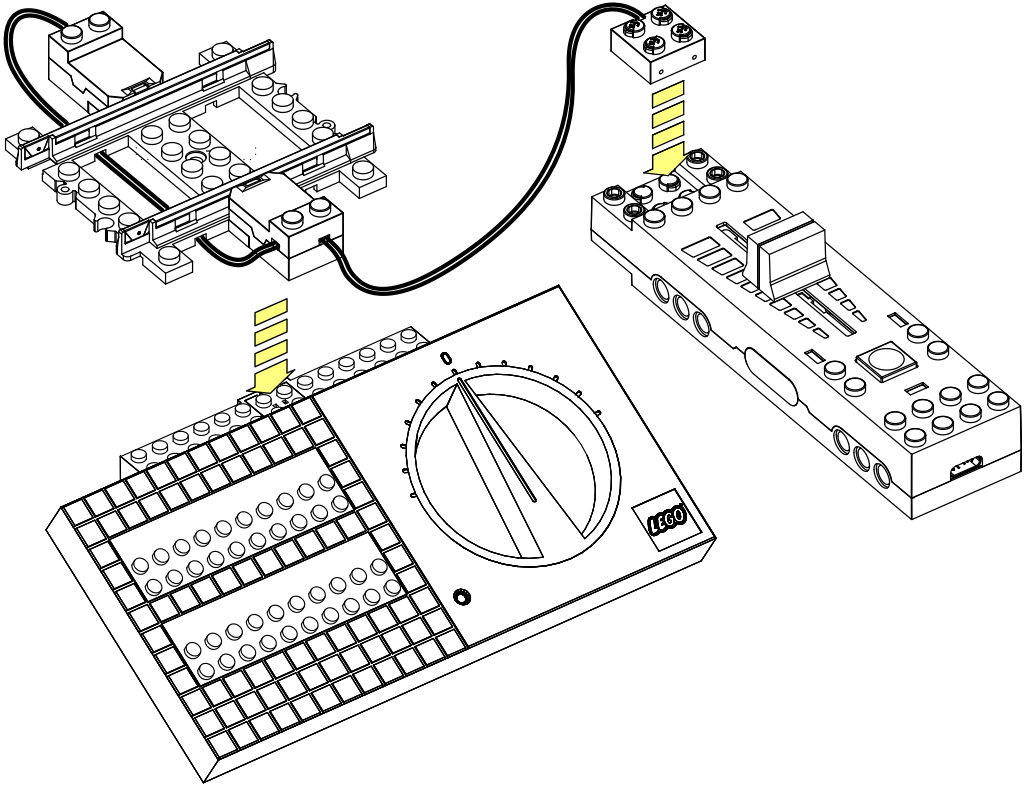

Connect to a Fx Bricks 9005 Speed Controller, LEGO brand Speed Regulator, or other power source to operate your trains. Connect multiple 9100 Track Power Connectors to large loops or long track segments using 94xx accessory cables for optimum low-loss power delivery.
This cable can be used as functional replacement for LEGO brand 9V track power cables (5306c or 75783) and is compatible with all LEGO brand 9V accessories which use the 2 x 2 x 2/3 stud 9V accessory connector.
Specifications
| Wire Length | 768 mm (30.25") |
| Wire Gauge | 26 AWG 0.14 sq mm |
| Wire Insulation | PVC/38P |
| Wire Conductor | Tinned Copper |
| Wire Diameter | 1.35 ±0.1 mm x2 |
| Connector Contacts | Silver plated BeCu |
| Connector Size (L x W x H) | 16 x 16 x 6.4 mm |
| Current (continuous) | 2 A (max) |
| Connector Brick Size (L x W) | 24 x 16 mm |
| Connector Brick Height (rail side 2 studs) | 3 plates / 9.6 mm |
| Connector Brick Height (wire side 1 stud) | 4 plates / 12.8 mm |
| Connector Brick Contacts | Gold plated Cu |
